2GIG Hardwire Conversion Kit

Convert Hardwired Security into Wireless

The 2GIG Hardwire Conversion Kit includes all of the essential components you need to upgrade an existing hardwired security system into a 2GIG wireless system. As the main kit component, the 2GIG Super Switch Takeover Module converts up to eight (8) hardwired zones into eight (8) wireless zones that are compatible with the wireless 2GIG GoControl panel (sold separately).

• Module converts 8 hardwired zones into 8 wireless zones
• Works with a third-party 12-volt control panel
• Includes power supply board with battery charging circuit
• Wall-mount enclosure neatly houses all components
• Provides extra space for additional Takeover Modules

About the Super Switch Takeover Module

The module connects to a third-party 12-volt control panel and converts signals from your hardwired zones/devices into wireless signals, which are then transmitted to the GoControl panel. The converted zones can then be managed and monitored through your GoControl system.

Additional Kit Components

The kit also includes a Power Supply Board (12/24 VDC) with a backup battery charging circuit, a Grounded Plug-in Transformer, and an ABS plastic enclosure. The enclosure includes a dedicated slot for a backup battery (not included), and also houses up to two (2) additional Super Switch Takeover Modules (three total), allowing you to convert up to 24 hardwired zones into wireless zones.

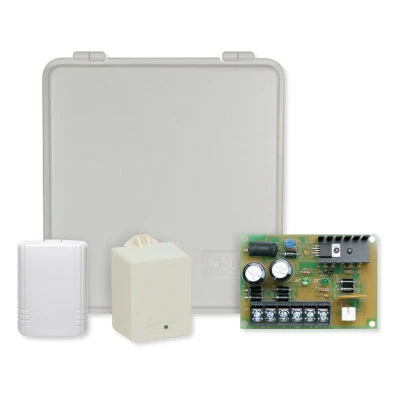

Contents

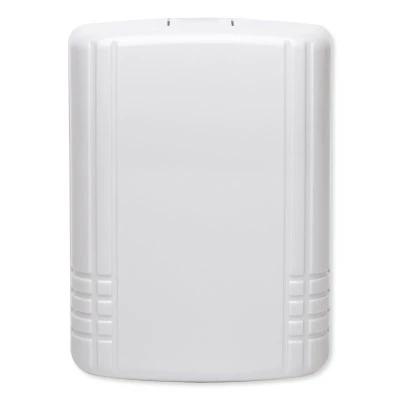

• 2GIG Super Switch Takeover Module (2GIG-TAKE-345)
• ABS Plastic Enclosure

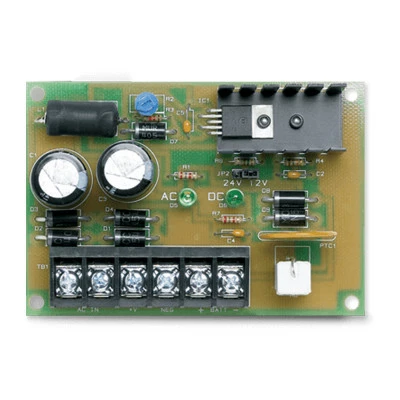

• Power Supply Board, 12/24 VDC

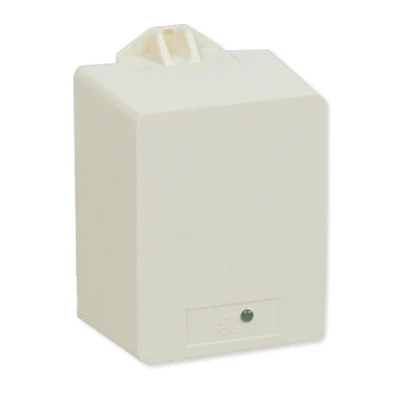

• Grounded Plug-in Transformer
• Mounting Hardware

Note: Requires a 2GIG GoControl Panel and one 12V, 1.4 AH Rechargeable Sealed Lead Acid Battery (or better), not included.

Innovation Drives 2GIG Technology

Now under Nortek’s family of Linear products, 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG’s GoControl system has become a leading control hub for Z-Wave wireless systems, has and won numerous industry awards, including TechHome’s 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.
