Aeotec Z-Wave Plus V2 MultiSensor 7, Gen7

Purchase 6 Sensors for the Price of 1

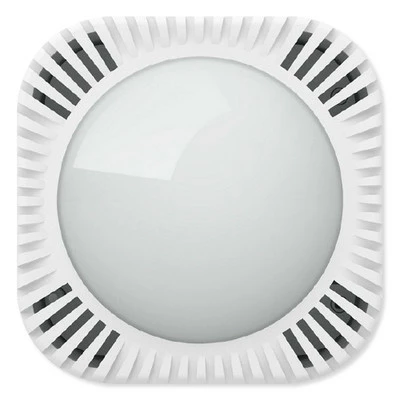

Catch nearly every detail within a room with the Aeotec Z-Wave Plus MultiSensor 7. This six-in-one sensor detects motion, vibration, temperature, humidity, ambient light levels, and UV light levels within a 33ft zone and reports data to your connected Z-Wave controller. The sensor can be programmed to alert you when certain thresholds are reached, or give your real-time information when you check in on your mobile device or web portal. The Multi-Sensor 7 is compatible with all major Z-Wave hubs and controllers.

• Z-Wave Plus detects motion, vibration, temperature, humidity, ambient light, UV light
• Detects motion up to 33ft (10m), reports temperatures within ±1.8°F (±1°C) accuracy, reports humidity within 5% accuracy, and measures accurate ambient light and UV light levels
• Powered by either USB connection or 2 CR123A batteries

Monitor the Room in Six Different Ways

• Motion: Detects motion up to 33 feet away within 120 degrees, perfect for monitoring activity in most rooms in your home.
• Vibration: Detects slight vibrations from device tampering, nearby footsteps or collisions, or an earthquake.
• Temperature: Reports real-time temperature and sends alerts when sudden changes in temperature are detected. Measures between -14° to 122°F (-10° to 50°C) and reports significant changes back to your Z-Wave controller.
• Humidity: The Multi-Sensor 7 measures the room’s humidity ranging from 20% to 90%.
• Ambient Light: Detects ambient light levels ranging from 0 lux to 30,000 lux, allowing you to program Z-Wave lights and curtains to create the perfect ambiance at any time of day.
• UV Light: Measures a room’s UV levels according to the World Health Organisation’s 0-11 UV Index, which allows you to monitor for unique health risks and causes of property damage. This helps prevent risks like eye damage and furniture bleaching.

Installation Details

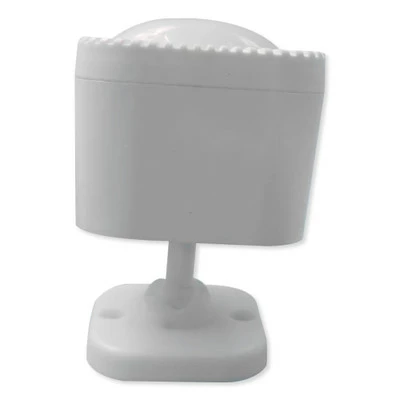

The Multi-Sensor 7 comes with a mounting arm for installation on a wall or in a corner with freedom to adjust. The mounting arm allows you to rotate the sensor up to 360° and adjust its field of view by up to 50°. You can alternatively install the sensor in-wall/ceiling using the recessor (sold separately), which minimizes the sensor’s extrusion from the wall to only 12mm (less than 1/2 inch). The recessor provides magnetic clasps to allow easy removal of the sensor.

Z-Wave 700 Series / Z-Wave Plus v2 Certification

Z-Wave 700 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series, Gen7 Z-Wave, or Z-Wave Plus v2. Z-Wave 700 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• MultiSensor
• Battery Cover
• Double-Sided Tape
• (2) Screws
• Back Arm Mount
• Warranty Card
• Quick Start Guide

Notes

• Requires a compatible Z-Wave controller, sold separately.
• Optional batteries not included.
• MultiSensor 7 is intended for use in dry locations only.
