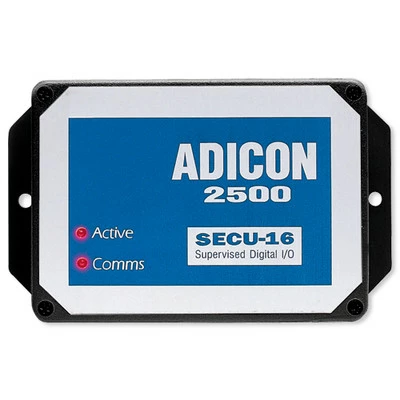

Applied Digital ADICON 2500 SECU-16 I/O Module

Used With Ocelot & Leopard II Controllers

Features eight relay outputs and eight supervised analog inputs. The 8 input channels may also be used as 8-bit A/Ds. Screw terminals are provided for all connections. Relay loads must be less than 250 mA. Inputs can be 0-5V analog, 4-20 mA sensors, or secure inputs (switches, motion detectors, etc.) RS-485 interface for connection to the ADICON network.

• Supervised inputs detect broken or shorted wires.

Home Automation With Applied Digital

Applied Digital manufacturers the power and easy-to-use Adicon collection of home controllers, including the Ocelot programmable standalone controller, the Leopard II touchscreen controller, and the Bobcat single point modules. Choose from a series of add-on modules to customize your Adicon controller.
