Start With A Strong Foundation For Your Security System

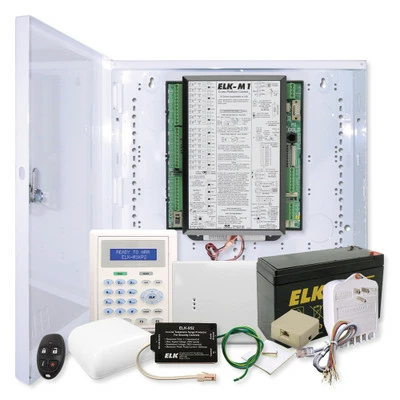

Are you ready to install a robust wireless security system? Start off with the Elk Wireless Ready M1 Gold Kit. This kit provides everything you need for a strong security foundation, including the main control board, a keypad, a keychain remote, a siren, and the appropriate power supplies and accessories. Once the kit is set up, you just add security sensors!

Add wired and/or wireless security sensors
Receive in-home voice alerts and/or phone calls
Remotely arm/disarm the system and trigger panic alarms
Enclosure neatly houses controller and peripherals

In addition to security devices, the kit includes a 14.25-inch square enclosure for housing the control board and peripherals. With its flexible hole pattern, the enclosure allows you to mix and match products from a variety of manufacturers. It also features a hinged, lockable cover, as well as a knockout for standard AC power.

M1 Gold Control Board

When triggered, the controller sends you customized status alerts through system speakers (indoor speaker included) or your phone. These alerts are created from M1 Gold’s 500+ word vocabulary, which also provides voice prompts for built-in telephone remote control.

Controller Features:

16 on-board zones expandable to 208
Two-way listen-in interface
RS-232 serial port to interface with computers and peripheral devices
Time/date stamped 512 event history log
Menu driven, full text keypad programming – no user manual necessary!
Voice announcement of alarms, zone descriptions, status, etc.
500+ word/phrase vocabulary
Link up to 6 words/phrases per announcement
10 custom recordable word/phrases
13 on-board outputs: 1 voice/siren, 1 siren driver, 1 form “C” relay and 10 low current (50mA) outputs
Can be partitioned into 8 separate areas and account numbers
199 user codes (4 or 6 digit) with assignable authority levels
6 arm levels: Away, Stay, Stay Instant, Nite, Nite Instant, Vacation

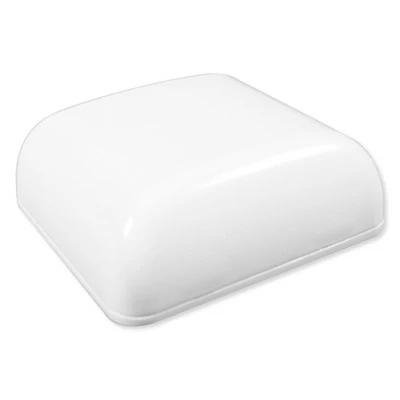

Echo Interior Speaker

The speaker mounts in your home to deliver voice alerts produced by the controller. The plastic enclosure is designed to blend into your decor and can even be painted. Once mounted, sound echoes off the mounting surface to create loud alerts. The speaker mounts to any flat surface or single-gang “J” box.

20 Watt, 8 Ohm speaker
Pre-wired for easy Installation
Mounting hardware included

LCD Keypad

The wall-mount LCD keypad is your main control point for the security system. It features a 32-character backlit display and blue lighted keys. It can be surface-mounted on a wall or ‘flush’ mounted in the wall using a back box kit (ELK-M1BBK2, sold separately).

M1 Two-Way Wireless Transceiver

The transceiver connects to the M1 Gold Control Board via the 4-wire RS-485 Data Bus, enabling wireless communication for the controller. It supports up to 144 wireless zones (individual sensors or groups). Multiple receivers (sold separately) may be added for increased coverage. Firmware updates are stored in the transceiver’s flash memory.

4-Button Keyfobs

Use these two wireless keychain remotes to arm/disarm the security system, check system status, and trigger a panic alarm. Both remotes also feature an LED indicator to provide wireless feedback from the controller.

Security System Accessories

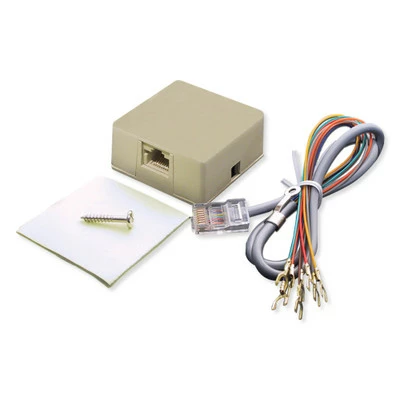

The included telco jack and cord connect the security system to your phone line, enabling automatic phone calls when alarms are triggered. The jack and cord come with a telephone surge protector, which prevents damage to the security system in case lightning or voltage spikes hit the phone line. Power supplies for the security system are also included in this kit.

Kit Includes

M1 Gold Control Board (M1GCB)
Two-Way Wireless Transceiver (M1XRFTW)
Two-Way Wireless 4 Button Keyfob (6010)
LCD Keypad (M1KP2)
Echo Paintable Interior Speaker (73)
Enclosure (SWB14)
In-line Telephone Surge Protector (952)
Telco Jack and Cord (RJSET)
8Ah Battery (1280)

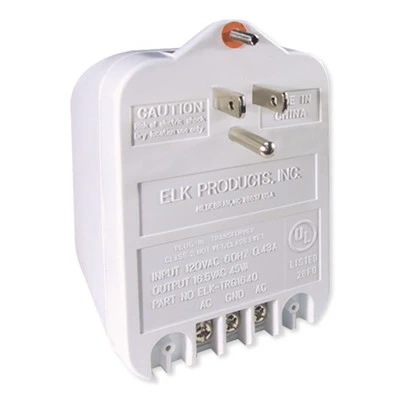

AC Transformer (TRG1640)
