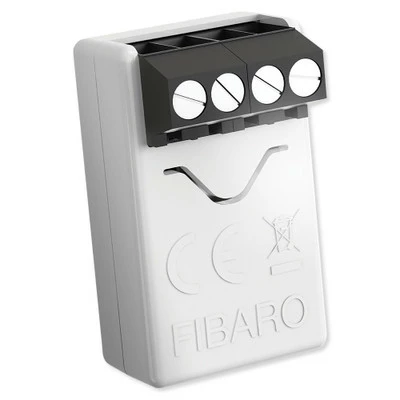

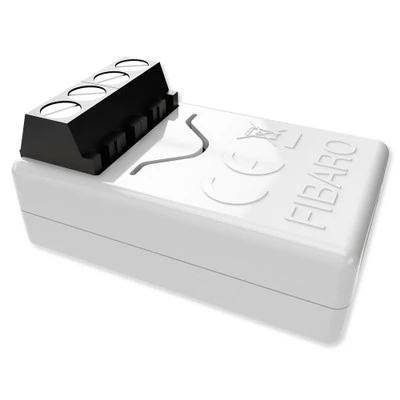

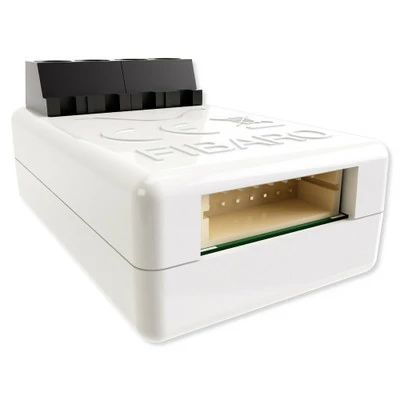

FIBARO Smart Implant

Retrofit Old Sensors into your Z-Wave Network

Integrate existing wired sensors in your home or business to your Z-Wave network with the FIBARO Smart Implant. This wired Z-Wave Plus module connects existing sensors using wired connections in order to add them to your Z-Wave network.

• Connects binary sensors, analog sensors, or humidity and temperature sensors to Z-Wave network
• Add Z-Wave control to various contact, temperature, or motion sensors, as well as garage door openers or relay switches
• Built-in temperature sensor
• Acts as a Z-Wave signal repeater and is Z-Wave Plus compatible
• Flashing LEDs indicate status and program modes

The FIBARO Smart Implant allows for any of the following sensor connections:

• (6) DS18B20 sensors
• (1) DHT sensor
• (2) 2-wire analog sensor
• (2) 3-wire analog sensor
• (2) binary sensors

Installation Details

Turn off your alarm system and sensors before connecting to the Smart Implant. Follow the included instructions to connect the Implant to a selected sensor. Once the Implant is connected, power your device and add them to the Z-Wave network.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the “Next Gen” Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

• Smart Z-Wave Plus Implant
• Operating Manual

NOTE: For indoor use only. Do not place the Implant antenna near metallic components in order to avoid signal interference.

Innovative Z-Wave Solutions By FIBARO

With multiple award-winning products, FIBARO has become one of the leading Z-Wave manufacturers in the home automation and security industries. The company has been lauded time and time again for bringing uniquely innovative Z-Wave solutions to people across the globe. Introduce your home to your imagination through FIBARO.
